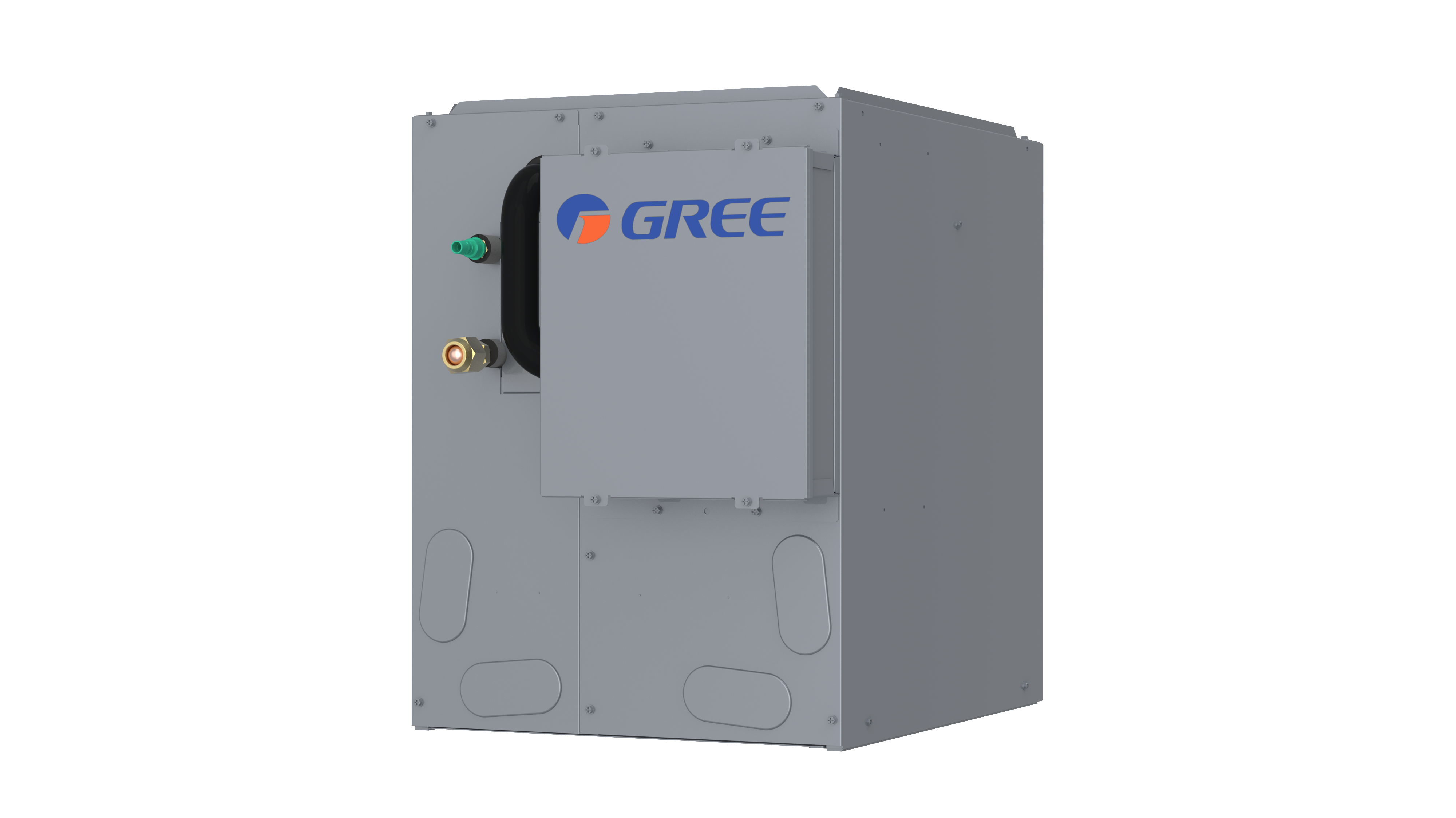

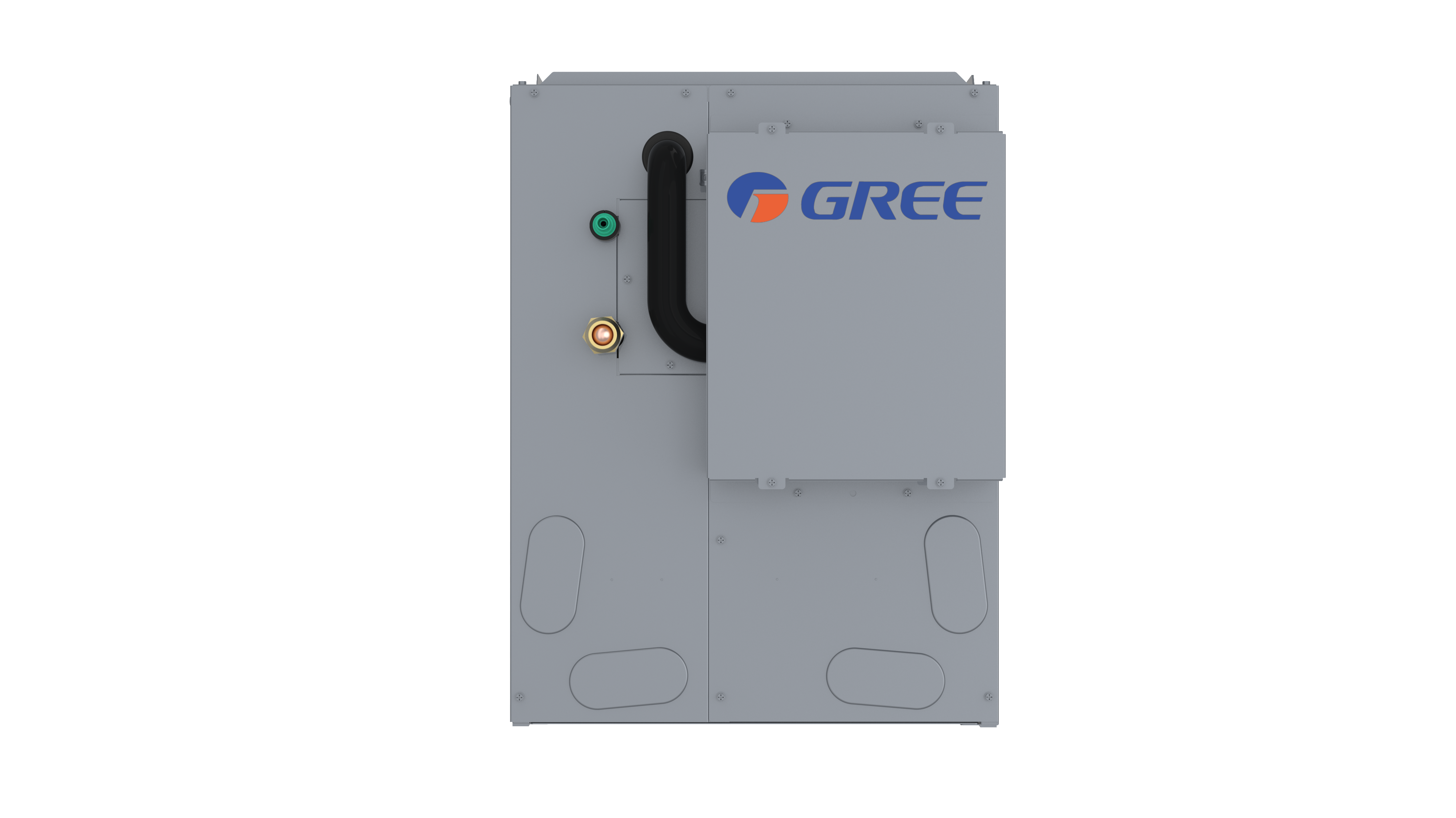

A Coil

GFAC**R32AH



Color: Silver



ꁆ ꁇ

Select Capacity (Cooling)

  • 24K

    CURRENT SELECTION

    GFU24HP230V1R32AH

    24000 BTU/h

  • 36K

    CURRENT SELECTION

    GFU36HP230V1R32AH

    36000 BTU/h

  • 48K

    CURRENT SELECTION

    GFU48HP230V1R32AH

    48000 BTU/h

  • 60K

    CURRENT SELECTION

    GFU60HP230V1R32AH

    60000 BTU/h

Home  ꄲ  Products  ꄲ  A Coil
Section Specification Item Condition / Detail Unit Value
Product Identification Product Category     Heat Pump
Outdoor Model     GFU24HP230V1R32AO
Indoor Model     GFAC24R32AH
Performance Ratings Cooling Capacity Min - Max Btu/h 12,000 - 28,000
Rated @95°F Btu/h 23000
Heating Capacity Min - Max Btu/h 12,000 - 30,000
Rated @47°F Btu/h 24000
Rated @17°F Btu/h 15000
Rated @5°F Btu/h 21600
SEER2     16
EER2     11
HSPF2     8.5
COP @5°F   1.8
Cooling Operation Temperature Range   °F 5 - 129
Heating Operation Temperature Range   °F -22 - 75
Refrigerant     R32
Indoor Unit Data Dehumidifying Volume   pt/hr 5.11
Unit Dimensions W × H × D in Φ1×0.05
Package Dimensions W × H × D in 17-1/2 × 23 × 21-1/4
Drain Piping   in 21 × 25-3/4 × 27-1/8
Net Weight   lbs 75
Gross Weight   lbs 83.8
Outdoor Unit Data Compressor Type     GREE / Double Cylinder / 2-Stage Inverter
Power Supply   VAC 208-230V / 1Ph / 60 Hz
Sound Pressure    dB(A) 61
Control Voltage   VAC 24
Rated Current Cooling   A 9.08
Rated Current Heating   A 9.56
MOCP (Max. Over Current Protection)   A 30
MCA (Min. Current)   A 27.7
Refrigerant Charge - R32   oz 102.3
Additional Charge   oz/ft 0.323
Unit Dimensions W × H × D in 39 × 37-13/16 × 14-9/16
Package Dimensions W × H × D in 45-3/8 × 43-11/16 × 18-13/16
Net Weight   lbs 187.4
Gross Weight   lbs 211.6
Refrigerant & Piping Line Set Size Liquid / Gas - Flare Type in 3/8 - 3/4
Pre-Charge Length   ft 31
Pipe Length (Min - Max)   ft 10 - 164
Max. Pipe Elevation   ft 98
KEY FEATURES
Compressor Ultra Low Frequency Torque Control Power Factor Correction Low Voltage Startup Inverter
Chassis Electric Heater Outdoor Electronic Expansion Valve (EEV) Compressor Electric Heater Self Diagnosis YES
Intelligent Defrosting Intelligent Preheating Memory / Power Failure Recovery Low Ambient Cooling YES
24VAC Thermostat Compatible       YES
Fin Coating       Acrylic Resin
Indoor Unit A2L Refrigerant Leak Sensor       Pre-Installed at Factory
Compressor Type       Rotary
Refrigerant Type       R32
