Charmo 115V

GS**HP115V1AI/O

● Advanced R32 Inverter Technology

● Up to 20.5 SEER2 / 12.5 EER2 / 8.8 HSPF2 efficiency

● Cooling Range from 0°F - 118°F

● Heating Range from -13°F - 75°F

● Supports line lengths up to 131 ft.

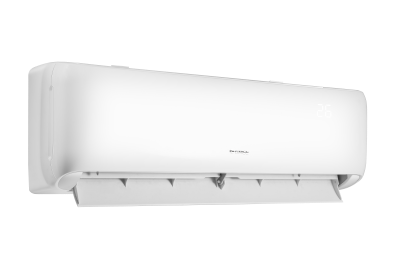

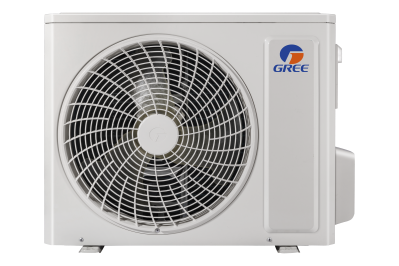

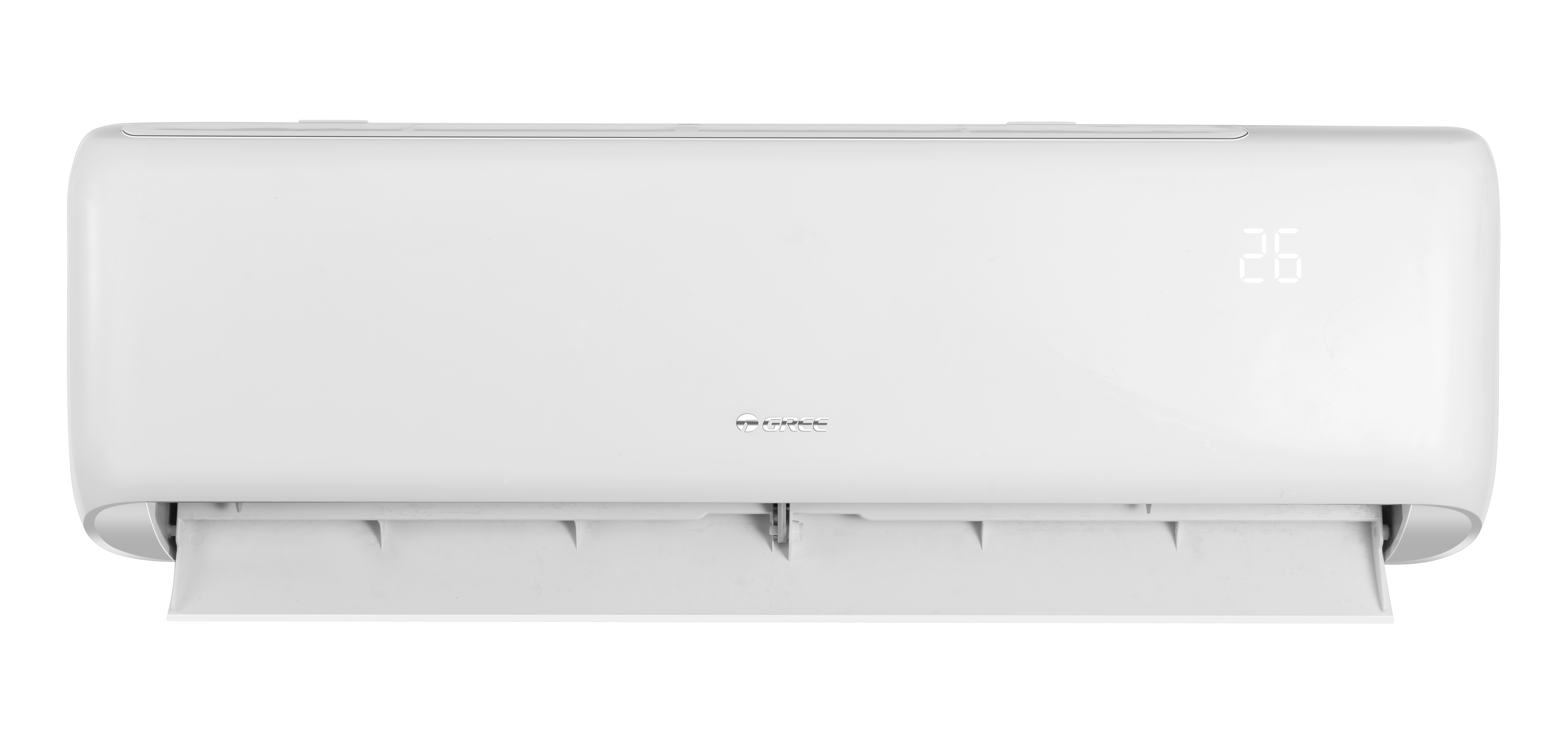

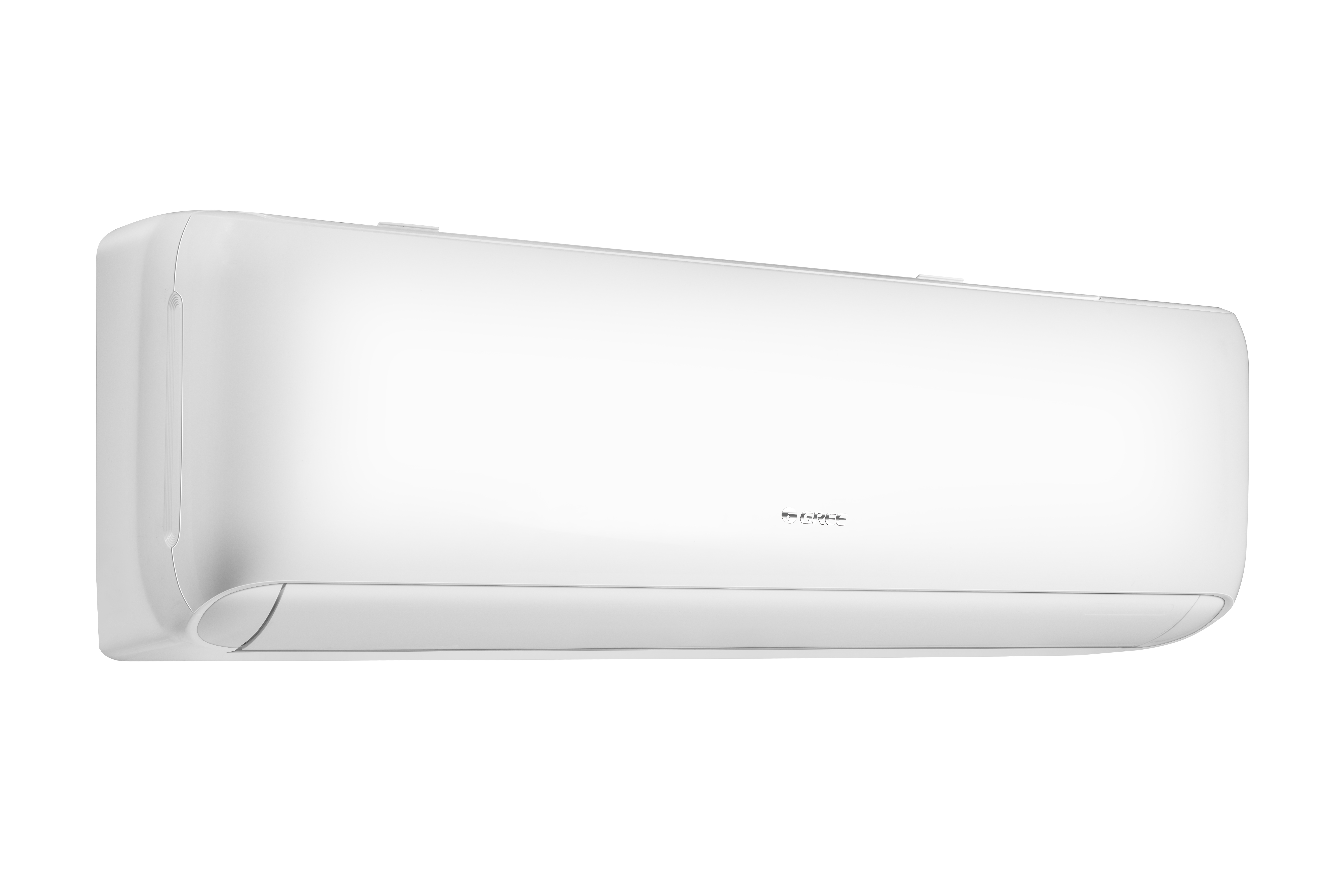

GREE Charmo 115V R32 Ductless Mini Split Heat Pump (GS09 / GS12)

The GREE CHARMO 115V Ductless Heat Pump provides reliable year-round comfort for homes and light commercial spaces. it combines efficient cooling and heating, quiet operation, smart control, flexible airflow, and service-friendly design for dependable performance and long-term value.

|

DOWNLOADS

Submittal data

GS09HP115V1AI

GS09HP115V1AO

Explore the Charmo 115v 9K submittal data.

DOWNLOAD ⬇

Submittal data

GS12HP115V1AI

GS12HP115V1AO

Explore the Charmo 115v 12K submittal data.

DOWNLOAD ⬇

MANUAL

Owner's Manual

Access the Charmo 115v user guide.

DOWNLOAD ⬇

Manual

Service Manual

Access the Charmo 115v service guide.

DOWNLOAD ⬇

Brochure

Charmo Brochure

Access the Charmo 115v brochure.

DOWNLOAD ⬇

Select Capacity

(Cooling)

  • 9K

    CURRENT SELECTION

    GS09HP115V1AI/O

    9000 BTU/h

  • 12K

    CURRENT SELECTION

    GS12HP115V1AI/O

    12000 BTU/h

Home  ꄲ  Products  ꄲ  Charmo 115V

  • Stay Comfortable in the Rooms That Matter Most



    Create a more comfortable space where you live, work, and relax. CHARMO is designed for everyday single-zone comfort, making it a practical choice for bedrooms, living rooms, home offices, apartments, and small commercial rooms.

    Efficient Comfort, Everyday Value



    CHARMO helps keep your space comfortable while using energy more efficiently. Its inverter-driven performance helps maintain steady temperatures and reduce unnecessary energy use, giving homeowners and light commercial users a practical balance of comfort, control, and value.

    Spend Less Time Worrying About Maintenance



    CHARMO is built to make everyday ownership easier. With self-cleaning technology, accessible filter design, smart control, and service-friendly design, it helps reduce routine maintenance effort while supporting reliable long-term performance.

    Frequently Asked Questions

    1. What is the GREE Charmo 115V mini split?
    ꀅ ꀅ ꂁ
    2. What is the difference between GS09HP115V1AI and GS09HP115V1AO?
    ꀅ ꀅ ꂁ
    3. Can the GREE Charmo 115V run on a regular household outlet?
    ꀅ ꀅ ꂁ
    4. What does SEER2 20.5 mean, and is the Charmo 115V energy efficient?
    ꀅ ꀅ ꂁ
    5. How cold will the Charmo 115V heat?
    ꀅ ꀅ ꂁ
    6. What size room does each Charmo 115V capacity cover?
    ꀅ ꀅ ꂁ
    7. How quiet is the Charmo 115V indoor unit?
    ꀅ ꀅ ꂁ
    8. Does the Charmo 115V support Wi-Fi and smart control?
    ꀅ ꀅ ꂁ
    9.What is the maximum line set length for the Charmo 115V?
    ꀅ ꀅ ꂁ
    10. Does the Charmo 115V have a self-cleaning function?
    ꀅ ꀅ ꂁ
    11. What is the difference between the Charmo 115V 9K and 12K models?
    ꀅ ꀅ ꂁ
    12. Where can I download the Charmo 115V submittal sheets and manuals?
    ꀅ ꀅ ꂁ
    13. How much does the GREE Charmo 115V cost, and where can I buy it?
    ꀅ ꀅ ꂁ

  • Fast Cooling



    Quickly lowers room temperature, then automatically returns to previous settings after approximately 20 minutes to help balance comfort and energy savings.

    7 Fan Speeds



    Multiple fan speed options allow users to choose the right airflow level for different comfort needs.

    I-Feel Comfort Control



    The remote control detects the surrounding temperature and sends it to the indoor unit, helping the system adjust comfort based on the user's actual location.

    Year-Round Comfort & Quiet Operation



    Provides efficient cooling and heating for single-zone applications, helping maintain a comfortable indoor environment throughout the year. Operates as low as 26 dB(A) in silent mode, helping create a peaceful environment for bedrooms, living rooms, offices, and other quiet spaces.

    3D Airflow & Fast Cooling



    Up-and-down and left-and-right swing help distribute airflow more evenly throughout the room. Quickly lowers room temperature, then automatically returns to previous settings after approximately 20 minutes to help balance comfort and energy savings.

    Spend Less Time Worrying About Maintenance



    7 Fan Speeds, I-Feel Comfort Control, Self-Cleaning Technology, Integrated Top-Mounted Filter, Smart Wi-Fi Control, Outdoor Temperature Display, Easy Installation and Maintenance, Anti-Corrosion Protection, Ultra-Wide Voltage Operation, Intelligent Auto Restart.

    Self-Cleaning Technology



    The evaporator self-cleaning process helps reduce dirt buildup and odor through condensation, frosting, defrosting, and drying.

    Integrated Top-Mounted Filter



    Designed for easier routine cleaning without disassembling the full unit.

    Smart Wi-Fi Control



    Supports Wi-Fi and Bluetooth connection through the GREE+ App for convenient remote control and setup.

    Outdoor Temperature Display



    Allows users to check outdoor ambient temperature through the GREE+ App or compatible thermostat.

    Easy Installation and Maintenance



    Includes installer-friendly design details such as quick mainboard access, removable air outlet, integrated overhead filter, English-scale mounting plate, and enlarged clasps for easier pipe connection.

    Anti-Corrosion Protection



    Selected models include anti-corrosion design features such as blue fin heat exchangers, protective coatings, and treated components for improved durability.

    Ultra-Wide Voltage Operation



    Inverter models are designed to operate reliably across a wide voltage range for improved system stability.

    Intelligent Auto Restart



    After power recovery, units restart at randomized intervals to help reduce impact on the power grid when multiple systems restart at the same time.

    The GREE CHARMO 115V​ is a single-zone ductless mini split heat pump designed for bedrooms, living rooms, home offices, apartments, and small commercial spaces. Running on a standard 115V/60Hz household outlet​ — no 230V electrician work required — the Charmo 115V delivers up to 20.5 SEER2 / 12.5 EER2 / 8.8 HSPF2​ efficiency with advanced R32 inverter technology.



    Available in two capacities: the 9K (GS09HP115V1AI/O)​ with indoor unit GS09HP115V1AI​ and outdoor unit GS09HP115V1AO, and the 12K (GS12HP115V1AI/O)​ with indoor unit GS12HP115V1AI​ and outdoor unit GS12HP115V1AO. Contractors and dealers often refer to these as 09AI / 09AO​ and 12AI / 12AO.



    The Charmo 115V provides reliable heating down to -13°F​ and cooling from 0°F to 118°F, with line sets up to 131 ft​ and quiet operation as low as 26 dB(A). Features include I-Feel comfort control, 7 fan speeds, self-cleaning technology, swing louvers, Wi-Fi and Bluetooth via the GREE+ App, blue fin anti-corrosion protection, and intelligent auto restart. AHRI certified and compatible with the GREE+ App for remote control and smart home integration.



    Charmo 115V Model Numbers & SKU Reference
    Capacity Complete System Indoor Unit (AI) Outdoor Unit (AO) Common Shorthand AHRI
    9K (9,000 BTU/h) GS09HP115V1AI/O GS09HP115V1AI GS09HP115V1AO 09AI / 09AO —
    12K (12,000 BTU/h) GS12HP115V1AI/O GS12HP115V1AI GS12HP115V1AO 12AI / 12AO —
    Note: "AI" denotes the indoor unit, "AO" the outdoor unit, and "I/O" the complete matched system. All Charmo 115V models operate on a standard 115V/60Hz residential circuit.



  •

    Section Specification Item Condition / Detail Unit 9K Value 12K Value
    Product Identification​ Product Category     Heat Pump Heat Pump
    Outdoor Model     GS09HP115V1AO GS12HP115V1AO
    Indoor Model     GS09HP115V1AI GS12HP115V1AI
    Performance Ratings​ Cooling Capacity Min - Max Btu/h 2,700 - 11,600 3,070 - 13,300
    Cooling Capacity Rated @95°F Btu/h 9,100 12,000
    Heating Capacity Min - Max Btu/h 2,400 - 13,300 3,070 - 14,600
    Heating Capacity Rated @47°F Btu/h 10,000 12,000
    Heating Capacity Rated @17°F Btu/h 8,100 9,700
    Heating Capacity Rated @5°F Btu/h 7,600 8,500
    SEER2     20.5 19
    EER2     11.9 9.3
    HSPF2     8.8 8.5
    COP @5°F   1.86 1.75
    Cooling Operation Temperature Range   °F 0 - 118 0 - 118
    Heating Operation Temperature   °F -88 -88
    Refrigerant     R32 R32
    Indoor Unit Data​ Air Flow Volume   CFM 159 - 353 182 - 424
    Sound Pressure   dB(A) 24 - 43 27 - 47
    Dehumidifying Volume   pt/hr 1.69 2.96
    Unit Dimensions W × H × D in 32 - 7/8 × 10 - 53/64 × 7 - 7/8 32 - 7/8 × 10 - 53/64 × 7 - 7/8
    Package Dimensions W × H × D in 35 - 15/64 × 13 - 37/64 × 10 - 43/64 35 - 15/64 × 13 - 37/64 × 10 - 43/64
    Net Weight   lbs 19.8 19.8
    Gross Weight   lbs 24.3 24.3
    Outdoor Unit Data​ Compressor Type     GREE / Single Cylinder / 1-Stage Inverter GREE / Single Cylinder / 1-Stage Inverter
    Sound Pressure   dB(A) 51 52
    Unit Dimensions W × H × D in 28 - 13/16 × 21 - 7/8 × 12 - 63/64 28 - 13/16 × 21 - 7/8 × 12 - 63/64
    Package Dimensions W × H × D in 31 - 17/64 × 24 - 7/32 × 14 - 51/64 31 - 17/64 × 24 - 7/32 × 14 - 51/64
    Net Weight   lbs 55.1 58.4
    Gross Weight   lbs 60.6 63.9
    Refrigerant & Piping​ Refrigerant Charge R32 oz 18.7 17.6
    Connection Pipe Gas Additional   oz/ft 0.2 0.2
    Refrigerant Line Size Liquid / Gas - Flare Type in 1/4 - 3/8 1/4 - 3/8
    Factory Pre-Charged Pipe Length   ft 25.1 25.1
    Max. Refrigerant Line Length Min - Max ft 65 65
    Maximum Vertical Pipe Separation   ft 40 40
    Electrical Requirements​ Power Supply     115V / 1Ph / 60Hz, supplied from outdoor unit 115V / 1Ph / 60Hz, supplied from outdoor unit
    Voltage Range Min - Max VAC 103 - 126 103 - 126
    Rated Current Cooling A 12.5 14.34
    Rated Current Heating A 15.4 14.64
    MOCP(Max. Over Current Protection)   A 20 20
    MCA(Min. Current)   A 19 19
    Main Power Cable Size   AWG Refer to Local Electrical Code Refer to Local Electrical Code
    Indoor/Outdoor Connection Cable Size   AWG 14 AWG 4-conductor stranded cable 14 AWG 4-conductor stranded cable
    KEY FEATURES​
    Dehumidify Auto Swing(Vertical Auto Swing) Sleep Mode Air Flow YES YES
    Compressor Electric Heater Auto Swing(Horizontal Auto Swing) Intelligent Preheating Auto Fan YES YES
    Chassis Electric Heater Indoor Side Auto Clean Self Diagnosis WIFI YES YES
    Intelligent Defrosting Force Defrosting Energy Saving   YES YES
    Low Voltage Startup       YES YES
      Multi Speeds     6 speeds 6 speeds
      Indoor Unit A2L Refrigerant Leak Sensor     Pre-Installed at Factory Pre-Installed at Factory
